Most engineers have dealt with the frustration of losing data between software tools. An annotated 3D model gets exported, lands in a partner's system, and the tolerances are gone, or they're there as dumb geometry that no machine can interpret. That's exactly the problem Model Based Definition and STEP AP242 exist to solve. But these aren't interchangeable. Understanding what each one does and where each falls short, matters before committing to a workflow.

What Is Model Based Definition (MBD)?

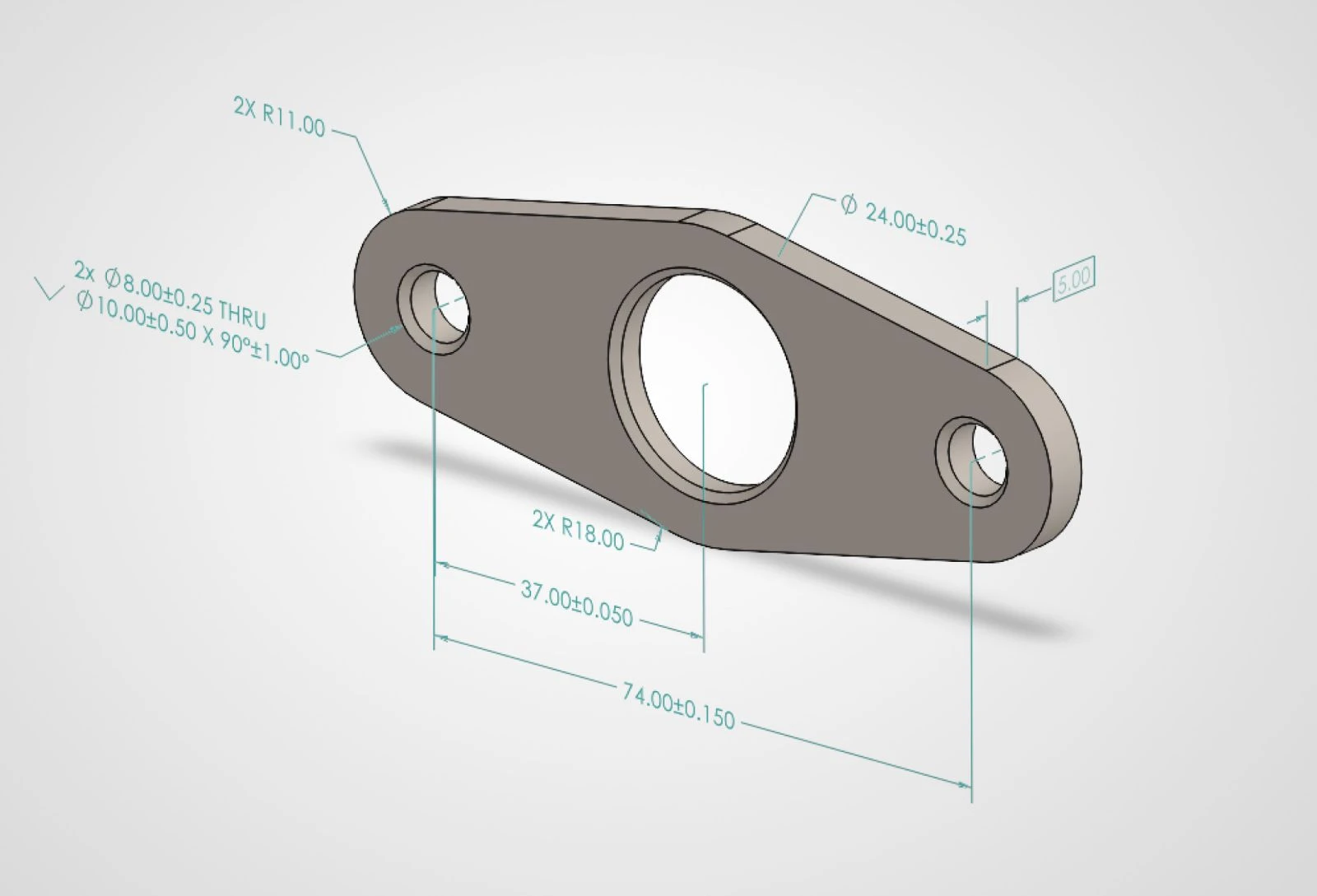

MBD is a method of documenting a product using only a 3D model as the single source of truth. The geometry, dimensional tolerances (GD&T) , material specs, and surface requirements all live inside one digital model, no separate 2D drawing, no companion PDF.

Traditionally, 3D designs were converted into flat 2D technical drawings for manufacturing. Engineers still do this. A lot of them. MBD eliminates that step, embedding Product Manufacturing Information (PMI) directly onto the 3D model during the design phase.
The model then becomes the authoritative document for design, manufacturing, process planning, and quality control. Anyone who needs product information accesses one file, not a stack of versioned drawings.

MBD is standardized by both ASME (Y14.41) and ISO (16792:2006). Major manufacturers have already adopted it, Boeing, GE, and most aerospace primes use MBD workflows. Scania reportedly cut communication-related time waste by around 18% after switching, mainly by eliminating errors caused by outdated 2D documentation.

The Real Advantages of MBD

Data captured early, reused often. The later information is recorded, the more chances for distortion. MBD pushes data capture to the design phase, where it's most accurate. That information then flows downstream without re-entry — no manually typing tolerances into a CAM system, no engineer interpreting a dimension from a blurry PDF.

Machine-readable tolerances: This is the critical one. A 2D drawing is readable by humans. A traditional STEP file renders GD&T visually, but a downstream CAM or CAPP system can't act on it programmatically. MBD with proper AP242 representation means tolerance data is genuinely machine-readable — software can query it, validate against it, and drive decisions from it.
Quality control integration. CMMs and inspection instruments can be programmed directly from the model. Tolerance requirements are already embedded. Instead of manually verifying limits from a drawing, the system knows exactly what to check and what the acceptable range is.

CAD-CAM automation:

With the right Model Based Manufacturing approach, PMI data on the model can drive automatic CAM strategy generation — tool selection, cutting parameters, potentially even CNC code.

That said, MBD isn't practical for every product. Simple parts with no tight tolerances or surface specifications don't benefit. The method earns its keep on complex, precision-critical components where there's significant PMI to manage.

What Is STEP AP242?

STEP — Standard for the Exchange of Product Data — is a neutral file format that lets different CAD systems exchange 3D data. The most familiar version is STEP AP214, the automotive industry standard and still what most CAD tools export by default.

In 2009, the decision was made to merge AP203 (aerospace and defense) and AP214 (automotive) into a single unified protocol. The result, published in 2014 as ISO 10303-242, is called STEP AP242 — formally titled "Managed Model Based 3D Engineering."

The merge wasn't just administrative. AP242 added something neither predecessor had: features 3D electrical harness, 3D semantic PMI, 3D piping, 3D kinematics assembly, and 3D shape quality. Also, it has digital rights management and mechatronics.

Presentation vs. Representation

STEP defines two ways to include GD&T data in a file, and the difference between them is the core of why AP242 matters:

Presentation converts tolerance and dimension data into visual geometry — lines, text, arcs — that displays on screen. Humans can read it. Software can render it. A CAM system can't interpret it as actual tolerance data. AP203, AP214, and AP242 all support presentation. It's what most CAD exports produce today.

Representation encodes GD&T semantically using standardized STEP entities. The data is machine-readable. A downstream system can query a flatness value, a perpendicularity reference, a dimensional location, and act on that information without human input. Only AP242 supports representation.

An AP214 file and an AP242 file can look identical on screen. Feed both into a CAPP or CAM system and only one delivers actionable data.

How AP242 Works in Practice

Geometric tolerance entities in AP242 fall into two types based on whether a datum reference exists:

• Self-referenced tolerances (flatness, straightness) link directly to the surface they control, with no datum needed.

• Cross-referenced tolerances (perpendicularity with a datum reference) carry the full datum chain semantically, not just visually.

A complete MBD dataset holds three categories: geometric shape data, GD&T annotation data, and the associations between them. AP242 handles all three. The key challenge is that most commercial CAD tools export geometry reliably but handle the annotation-to-geometry associations inconsistently, which is why validation matters.

Conclusion

Manufacturing is shifting away from 2D drawings, and MBD is at the center of that shift. The idea is simple: one 3D model carries all the product information, from geometry to tolerances, and STEP AP242 is what keeps that data intact as it moves between different software systems. Older STEP standards provide geometry for visual inspection, whereas AP242 provides data that a machine can actually use. This shift from visual presentation to semantic representation is what makes downstream automation possible.

Feel free to contact us if you have any questions or want help implementing MBD and AP242, and our team will get back to you quickly with practical guidance
